Parameter types used in geoprocessing widges are as follows:

• GPBoolean



  Check the check box to set the default value to true.
• GPDouble



  Enter a numeric value for the default or leave the field blank.
• GPLong



  Enter a long integer value for the default or leave the field blank.
• GPString



  Enter a text value for the default or leave the field blank.

• GPLinearUnit



  Enter a numeric value for the default or leave the field blank. Select a default unit of length.

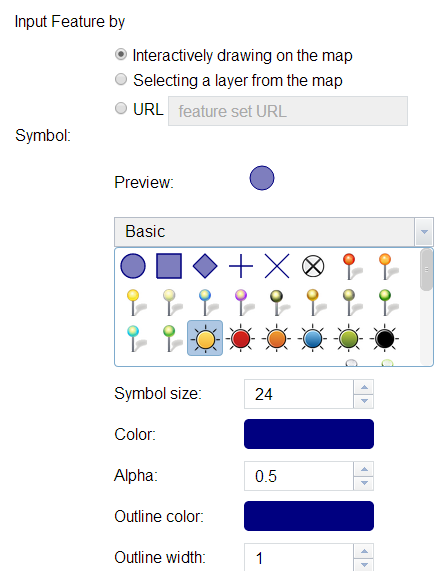

• GPFeatureRecordSetLayer



  Choose the symbol shown for the input or output features. Reference the Draw widget for the complete set of symbol options.

  Note:

  Currently, Web AppBuilder for ArcGIS does not support attributes for input features.

• GPRecordSet
• GPDate



  Enter a date and time value for the default or leave the fields blank.
• GPDataFile



  Add a URL or upload a file in the data field as the default or leave the field blank.
• GPRasterDataThis parameter type is currently not supported by Web AppBuilder.
• GPRasterDataLayer

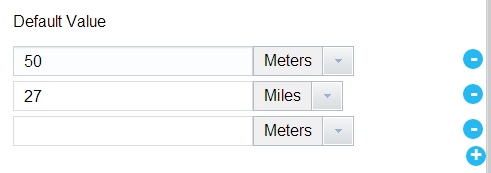

• GPMultiValue:GPParameterType



  The interface displayed by the multi-value selector varies based on the parameter type. Click + to add a new default value or - to remove one.
